Description

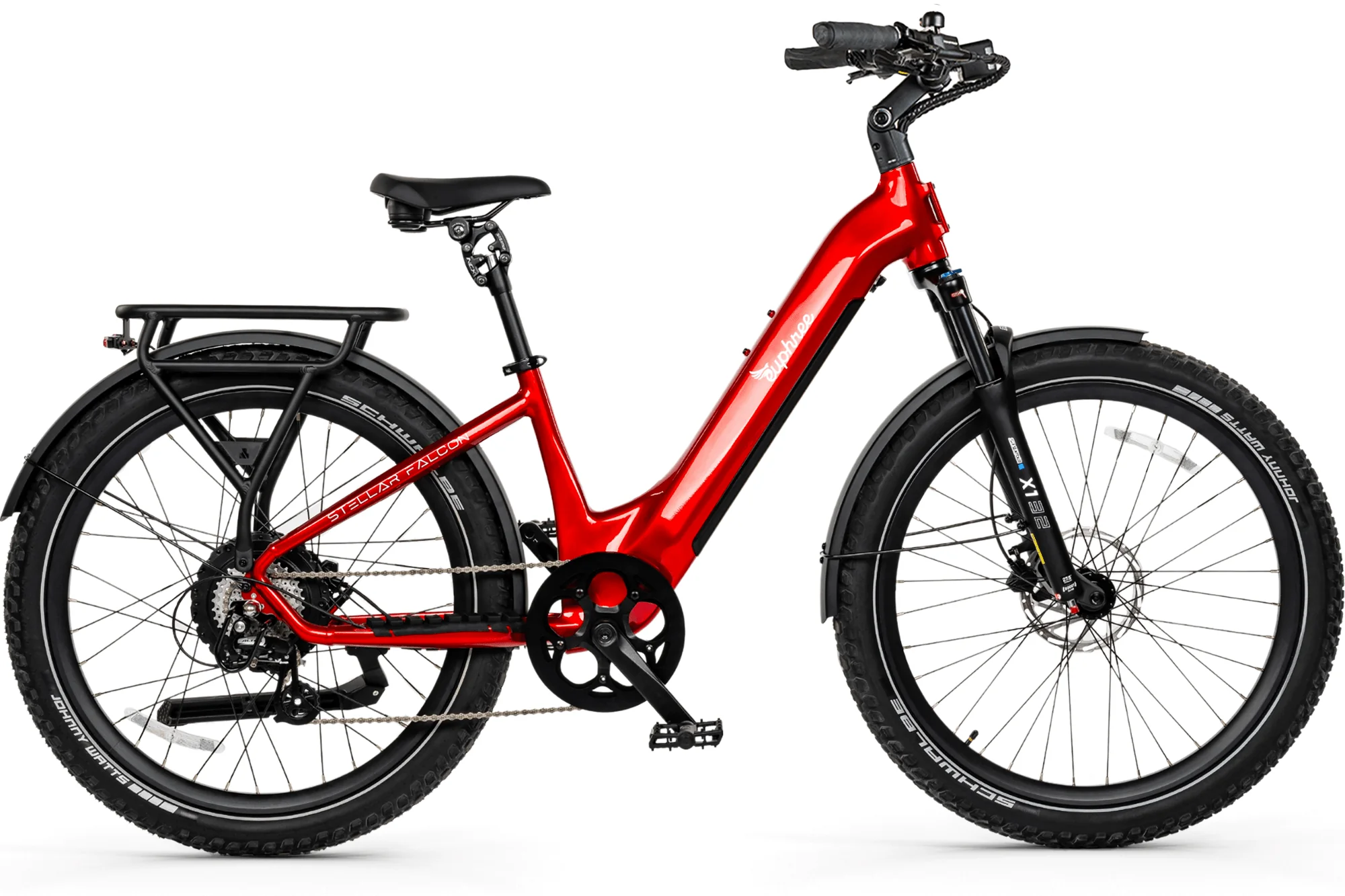

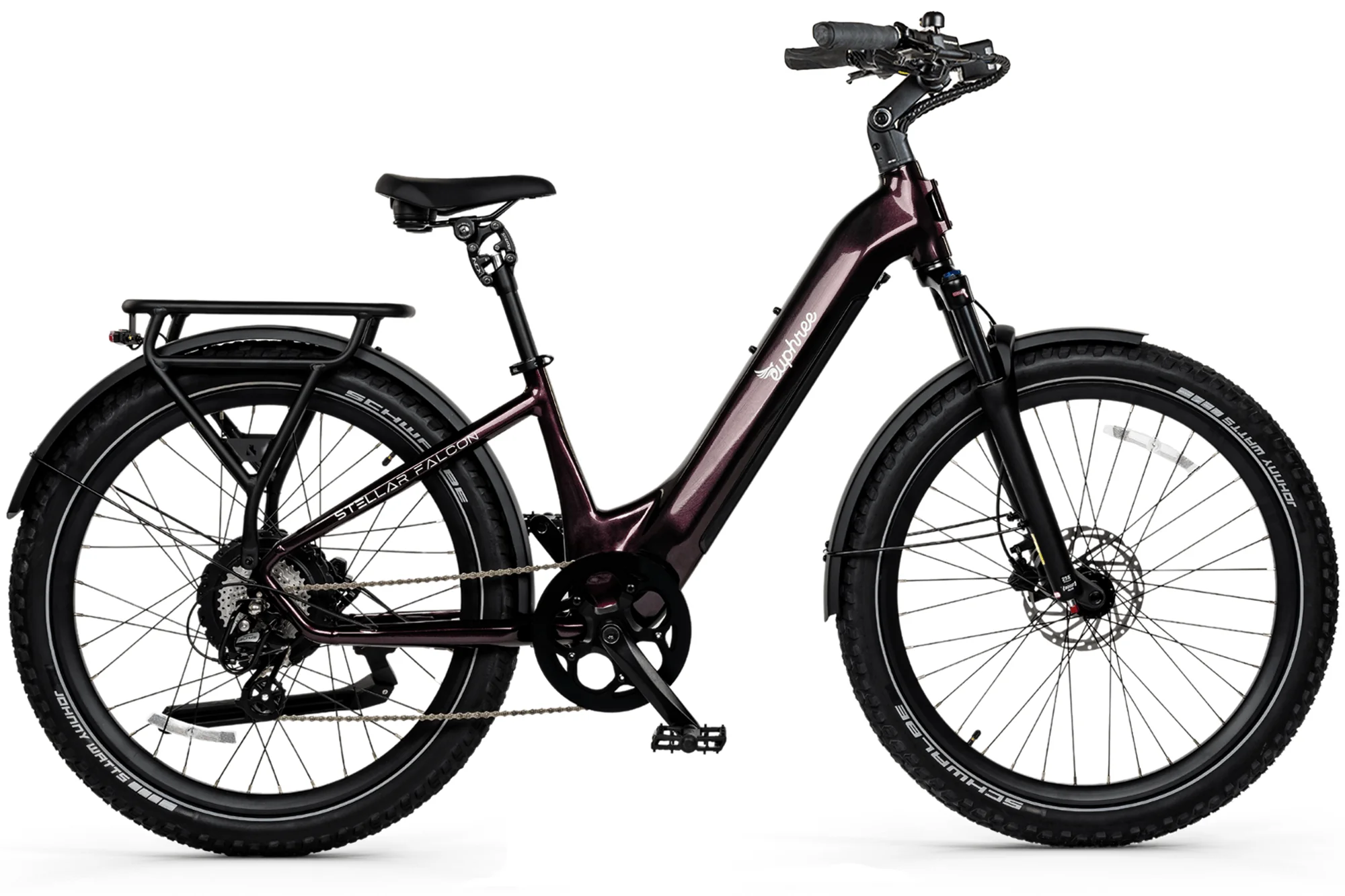

The Stellar Falcon Step-Thru combines power, comfort, and reliability into a versatile cruiser that’s equally at home on city streets or neighborhood trails. Built on a durable 6061 aluminum frame and SGS certified to meet UL 2271 (battery) and UL 2849 (system) safety standards, the Falcon is designed to keep you rolling confidently for years to come.
At its core is a 750W Bafang geared hub motor (peaking up to 1200W) paired with a 48V 15Ah in-frame battery, delivering up to 70 miles of range and top speeds of 28 mph. The motor responds through both torque and cadence sensors, giving riders smooth, natural-feeling assistance that adapts instantly to pedal effort. A left-side color LCD with USB-C charging keeps you connected, while an integrated headlight and 220° rear brake light provide visibility day or night.
Comfort is a priority on the Falcon. An SR Suntour XCM 32 Air fork with 110mm of travel and an NCX suspension seatpost absorb bumps and rough pavement, while the wide Velo comfort saddle and upright handlebars reduce strain on your back and wrists. Schwalbe Johnny Watts 27.5” × 2.8” tires provide grip and stability on both pavement and light gravel, backed by double-walled rims and heavy-duty spokes rated for a 350 lb payload.
Stopping power is delivered by Tektro E350 hydraulic disc brakes with 180mm rotors and motor cut-off levers. Shimano Altus 8-speed shifting, a KMC anti-rust chain, and an integrated rear rack (100 lb capacity) round out the Falcon’s all-purpose design. With full aluminum fenders, ergonomic locking grips, and a built-in phone mount, the Falcon Step-Thru is ready for everyday commutes, weekend cruises, or long-distance adventures.
Technical Specifications
Motor: 750W Bafang geared hub (1200W peak)
Battery: 48V 15Ah (720 Wh), in-frame LG cells
Range: Up to 70 miles
Top Speed: 28 mph (Class 3)
Sensors: Torque + Cadence
Display: Left-side color LCD w/ USB-C port
Controller: 48V / 25A in-frame
Weight: 74 lbs
Capacity: 350 lbs total | Rear rack 100 lbs | Front rack 30 lbs
Drivetrain & Brakes
Shimano Altus 8-speed derailleur
Freewheel: 11–34T
Chain: KMC Z7 anti-rust
Tektro E350 hydraulic disc brakes, 180mm rotors
Suspension & Wheels
SR Suntour XCM 32 Air fork, 110mm travel
SR Suntour NCX suspension seatpost
Schwalbe Johnny Watts 27.5 × 2.8” tires
Double-walled rims, thru-axle front hub
Additional Features
Integrated 200 lumen LED headlight
220° rear brake light
Left thumb throttle
Ergonomic locking grips
Integrated phone mount (SP Connect)
Full aluminum fenders
Adjustable kickstand
Sizing & Fit
Rider Height: 5’2” – 6’0”
Standover: 16”
Saddle Height: 33–40” adjustable
Handlebar Height: 42–45” adjustable
Wheelbase: 46” | Total Length: 72”
