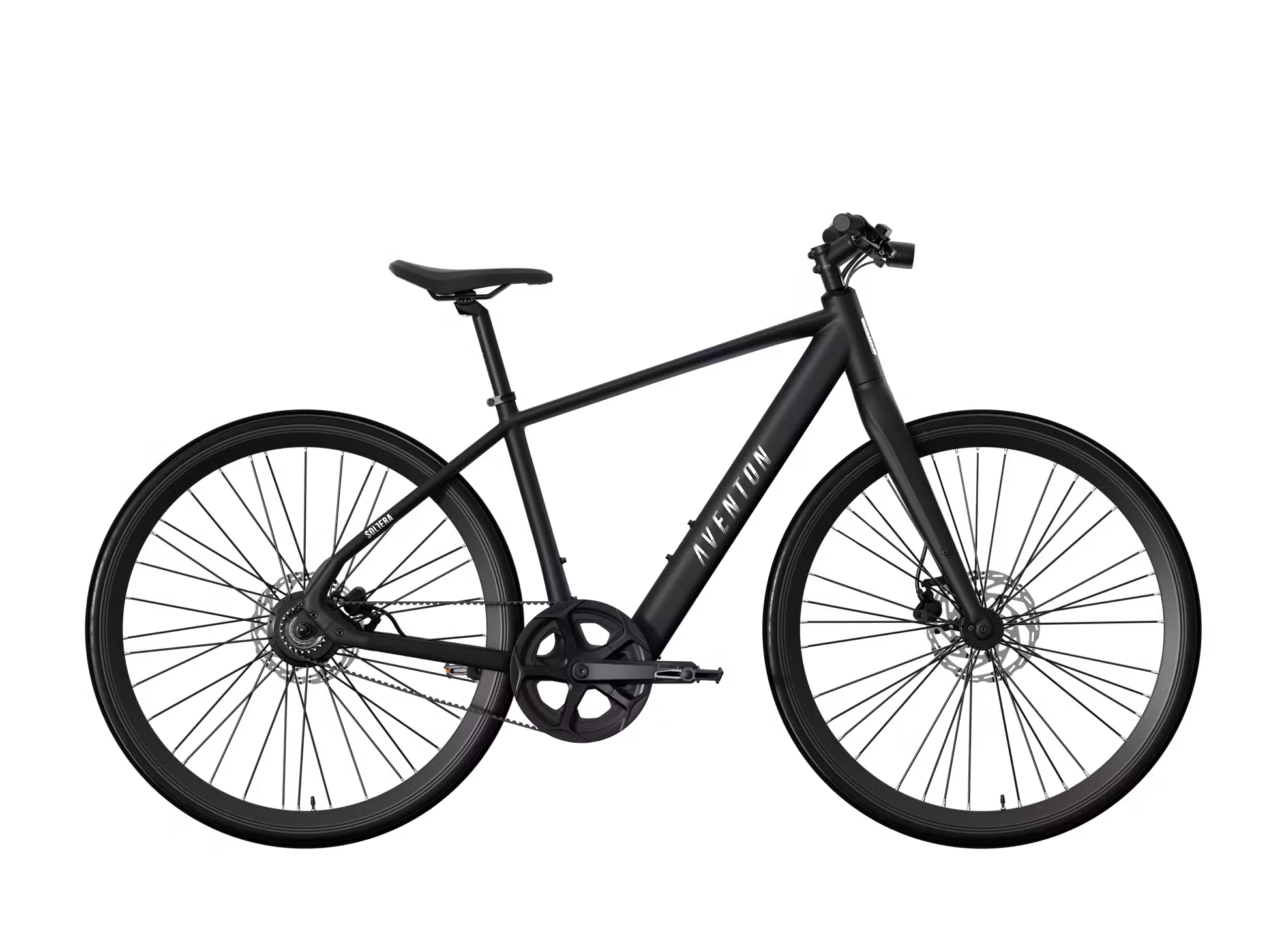

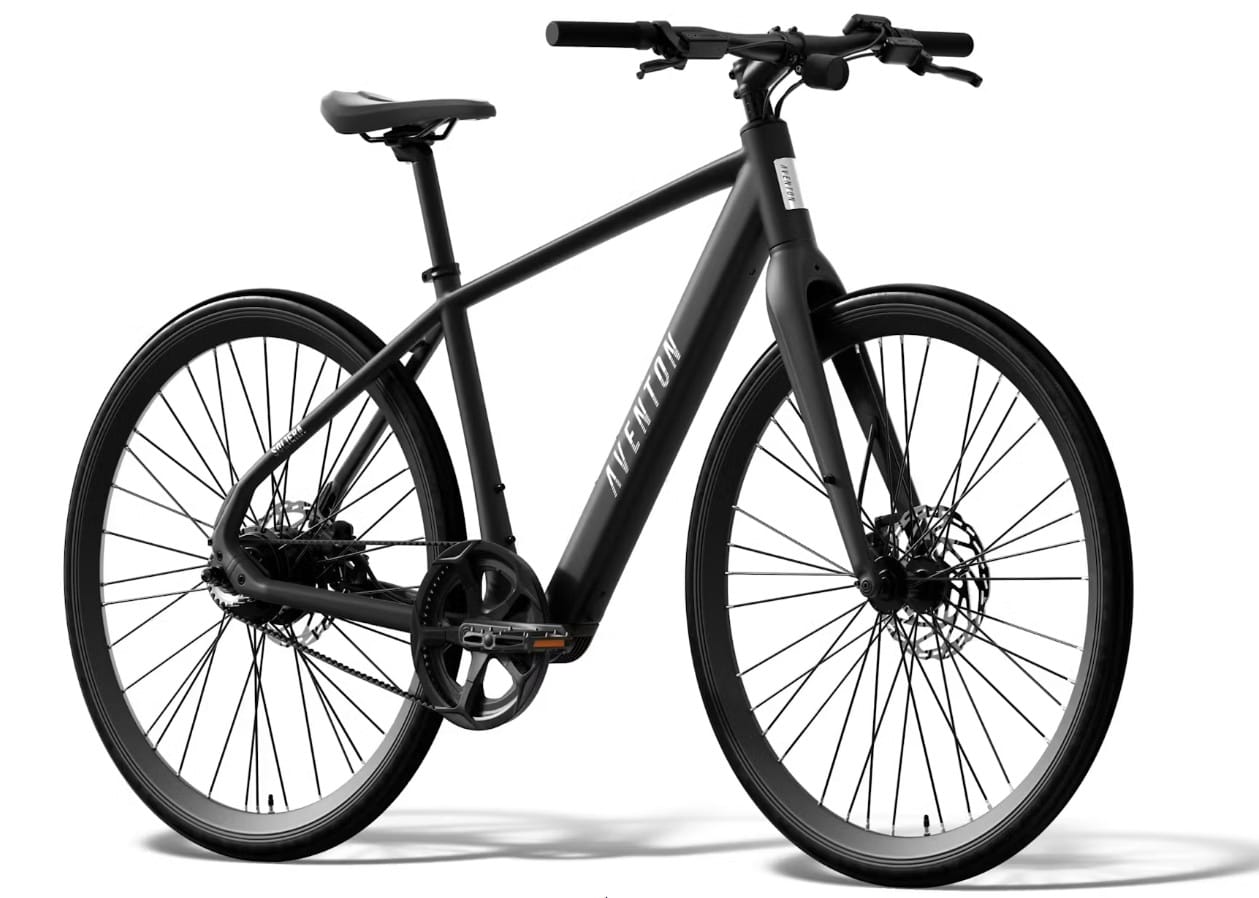

The Aventon Soltera 3 ADV Ebike is a lightweight urban ebike built for efficient city riding, smooth handling, and low-maintenance performance. With a sleek step-over frame, integrated battery, hydraulic disc brakes, and Gates Carbon Belt Drive, it offers a clean and responsive ride for everyday commuting and recreational use.
At just 37 lbs, the Soltera 3 ADV is easy to manage while still offering up to 70 miles of range. Its Class 1 pedal-assist system, torque sensor, integrated lights with turn signals, and IPX6 water resistance make it a smart choice for riders who want a simple, durable, and commuter-friendly ebike.
General Info
- Model: Soltera 3 ADV Ebike
- Weight: 37 lbs
- Total Weight Limit: 300 lbs
- Rider Height: S 5’1″-5’5″, M 5’5″-5’9″, L 5’9″-6’1″, XL 5’1″-6’4″
- Water Resistance: IPX6
- Range: Up to 70 miles
- Bike Safety Certifications: TUV Certified
- Battery Safety Certifications: TUV Certified
- Ideal Use: Urban riding
Technical Overview
Frameset
- Frame: 6061 double-butted aluminum alloy with internal battery
- Fork: Rigid aluminum fork
- Rear Spacing: 142mm
- Fork Spacing: 100mm
- Frame Style: Step-over
Wheelset
- Front Wheel: 700c, 32-spoke, double wall aluminum rim, thru axle
- Rear Wheel: 700c, 36-spoke, double wall aluminum rim, nutted hub drive motor
- Tires: Kenda K1085 700x38C
Ebike System
- Speed: Class 1
- Motor: 36V, 250W
- Motor Torque: 40Nm
- Display: Aventon BC147
- Battery: Integrated lithium-ion 36.9V, 9.94Ah, 366.8Wh
- Battery Weight: 4.2 lbs
- Controller: 36V, 15A
- Throttle: N/A
- Sensors: Double-sided bottom bracket torque sensor
- Charger: 36V output, 42V / 4A
- Charging Time: 3-4 hours from 0% to 100%
- Lights: Integrated front and rear lights with turn signals
Brakes
- Front Brake: Tektro HD-T3020 hydraulic disc brake without e-cutoff
- Rear Brake: Tektro HD-T3020 hydraulic disc brake without e-cutoff
- Front Brake Rotor: Tektro 180mm, 6-bolt
- Rear Brake Rotor: Tektro 180mm, 6-bolt
Drivetrain
- Drivetrain: Single speed, Gates Carbon Belt Drive
- Chainring: 60T
- Hub Flywheel: 22T
- Belt: Gates Carbon Belt Drive 122T CDN
- Chainring BCD: 130
- Crankset: 3-piece, 165mm crank arm
- Bottom Bracket: Square taper, sealed, double-sided torque sensor, 83mm x 158.5mm
- Pedals: 9/16″ composite platform
Cockpit
- Saddle: Aventon saddle
- Seatpost: Aventon 27.2
- Seatpost Clamp: 31.8mm
- Handlebars: Aluminum 31.8mm, 680mm
- Stem: 31.8mm, 70mm length, 15°
- Grips: Aventon lock-on grips
- Headset: Aventon headset with integrated cable routing
Included Accessories
- Kickstand: Included in accessory box
Additional Technical Notes
The Soltera 3 ADV ships as a Class 1 ebike and is not throttle compatible. This bike is equipped with a Gates Belt Drive system that helps eliminate common chain issues such as chain stretch and regular wear. Belt drive systems typically last 2-3 times as long as traditional chains and cogs.
Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle, giving it strong water resistance for riding in heavy rain, puddles, and muddy conditions. However, IPX6 does not mean waterproof. Aventon ebikes are not designed for full submersion, and pressure washers or sprayers should not be used to clean the bike because pressurized water can still damage components.
Max range is determined using PAS Eco on flat terrain with a 160 lb rider.
