Description

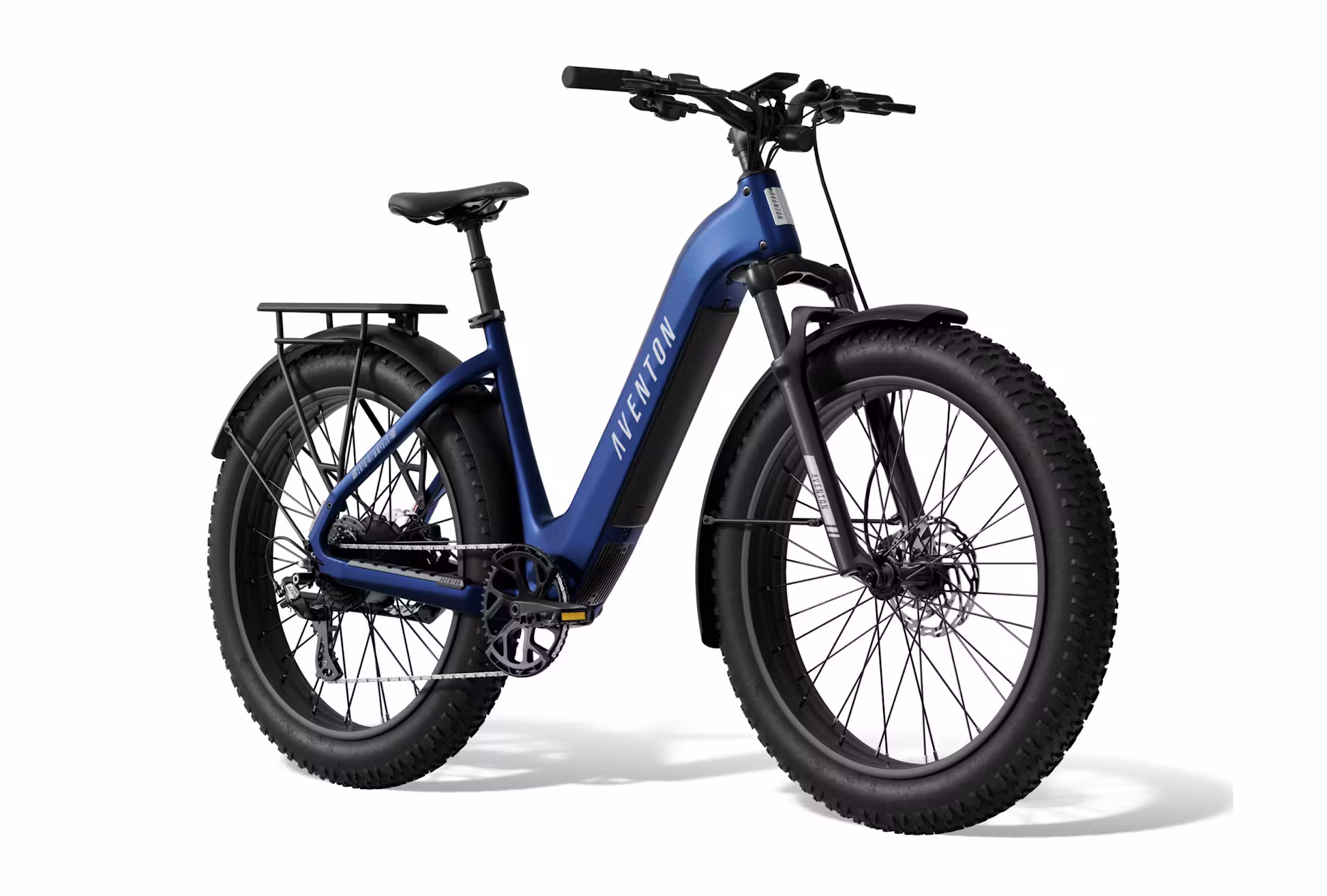

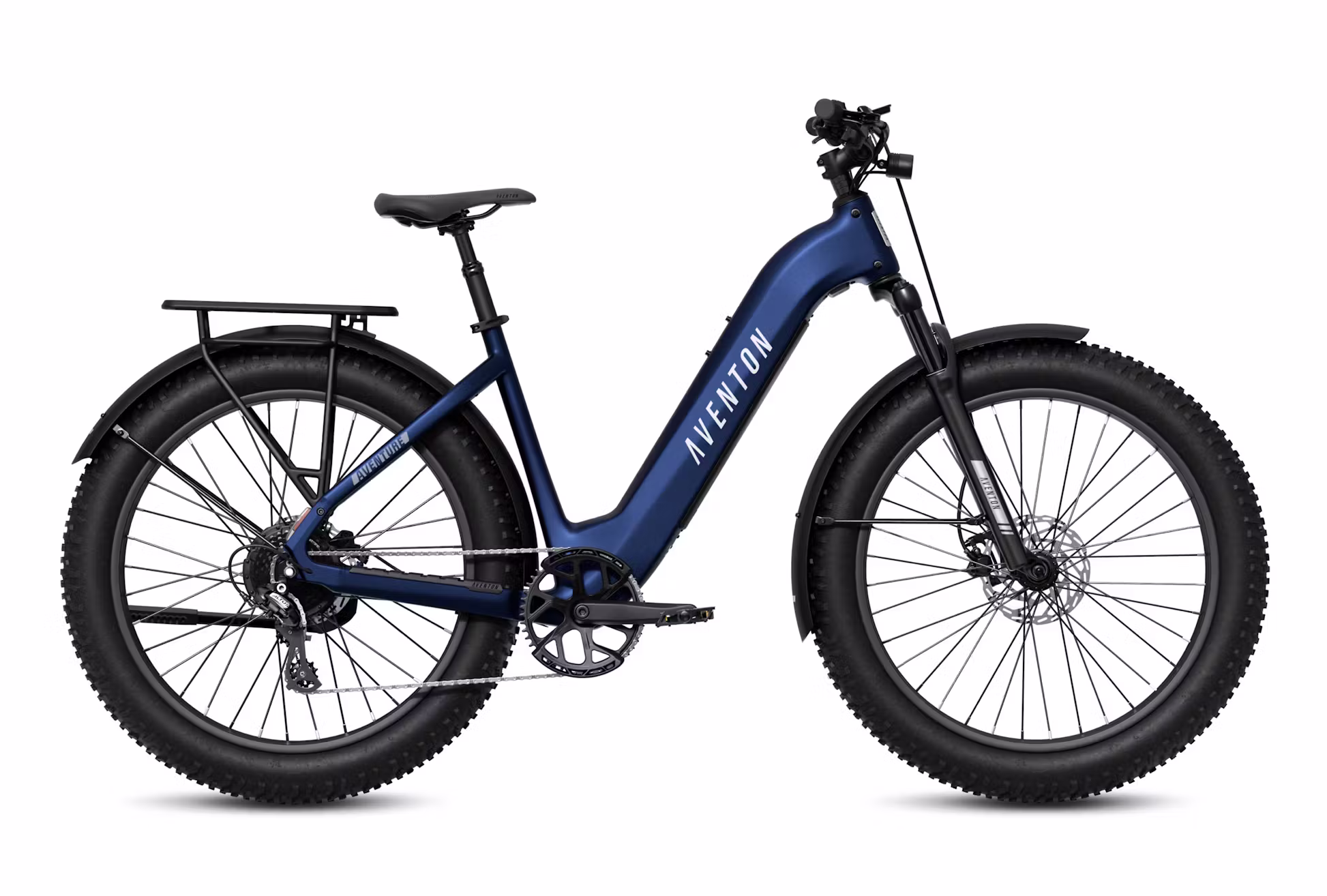

The Aventon Aventure 3 Step-Through Ebike is a powerful all-terrain electric bike designed for riders who want comfort, capability, and versatility. With fat tires, front suspension, hydraulic disc brakes, and a responsive 750W motor, it is built to handle pavement, gravel, sand, and rough terrain with confidence.
Its step-through frame makes mounting and dismounting easy, while the high-capacity battery, torque sensor, and Boost Mode provide smooth acceleration and extended range. Whether commuting, exploring trails, or cruising around town, the Aventure 3 delivers a stable and comfortable riding experience.
General Info
- Model: Aventure 3 Step-Through Ebike
- Weight: 77 lbs
- Total Weight Limit: 400 lbs
- Rider Height: R: 4’11” – 5’7″ | L: 5’7″ – 6’1″
- Ebike Class: Class 2 Ebike
- Range: Up to 65 miles
- Battery Safety Certifications: Certified to UL 2271
- Bike Safety Certifications: UL Safety Certified UL 2849
- Ideal Use: All-terrain riding
- Water Resistance: Bike – IPX5 / Components – IPX6
- Pedal Assist: 3 levels plus Boost Mode with Ride Tune customization
Technical Overview
Frameset
- Frame: 6061 aluminum with gravity cast front triangle
- Fork: Aventon / Zoom suspension fork, 80mm travel with lockout
- Rear Spacing: 190mm
- Fork Spacing: 135mm
- Frame Style: Step-through
Wheelset
- Front Wheel: 26″, 36 hole, 13g, double wall aluminum fat tire rim, nutted axle, Schrader valve
- Rear Wheel: 26″, 36 hole, 12g, double wall aluminum fat tire rim, nutted hub drive, Schrader valve
- Tires: Inova 26×4.0 puncture resistant
Ebike System
- Speed: Class 2
- Motor: 36V, 750W hub drive
- Motor Torque: 80Nm
- Motor Power: 750W (1440W under Boost Mode)
- Display: Aventon BC280
- Battery: Removable internal lithium-ion, 36V, 20Ah, 733Wh, LG 21700 cells
- Battery Weight: 8.7 lbs
- Controller: 36V, 33A
- Throttle: Aventon left handlebar mounted
- Sensors: Double-sided bottom bracket torque sensor
- Charger: 36V output, 42V / 4A
- Charging Time: 5 hours from 0% to 100%
- Lights: Integrated front and rear lights
Brakes
- Front Brake: Tektro HD-E3520 hydraulic disc brakes with EJ1 quick disconnect wire
- Rear Brake: Tektro HD-E3520 hydraulic disc brakes with EJ1 quick disconnect wire
- Front Brake Rotor: Tektro 180mm, 6-bolt
- Rear Brake Rotor: Tektro 180mm, 6-bolt
Drivetrain
- Rear Derailleur: Shimano Altus 8-speed
- Shifter: Shimano 8-speed trigger
- Chain: 7/8 speed, 118L
- Cassette: 12-32T / 8-speed Shimano CS HG200-8
- Chainring: 48T
- Chainring BCD: N/A
- Crankset: 3-piece, 170mm crank arm
- Bottom Bracket: 100×177 square taper, double-sided torque sensor bottom bracket
- Pedals: 9/16″ alloy platform
Cockpit
- Saddle: Aventon saddle
- Seatpost: Aventon suspension seatpost, Ø30.9mm, 350mm length, 50mm travel
- Seatpost Clamp: 34.9mm
- Handlebars: Aluminum 31.8mm, 680mm
- Grips: Aventon lock-on grips
- Headset: Sealed bearing H887 Peilin 28.6mm x 56mm x 56mm H18.6mm 7pcs
Included Accessories
- Kickstand: Included, rear mount
- Rear Rack: Included
- Fenders: Included
Additional Technical Notes
The Aventure 3 ships as a Class 2 ebike with both pedal assist and throttle functionality. The throttle can also be unplugged and removed for riding in areas where only Class 1 ebikes are allowed or where throttles are prohibited.
Aventon ebikes are built to the IPX5-rated standard. An IPX5 rating means the bike is protected against low-pressure water jets from any direction, allowing for riding in light to moderate rain or through small puddles. However, IPX5 does not mean waterproof. Aventon ebikes are not designed for full submersion, and pressure washers or high-pressure sprayers should not be used because they can damage sensitive components.
Maximum range is determined using PAS 1 on flat terrain with a rider weight of 160 lbs.
